Spring Cloud OpenFeign源码如何深入解析？

本文共计3782个文字，预计阅读时间需要16分钟。

一、简介Feign是一个HTTP请求调用的轻量级框架，通过Java接口注解的方式，可以轻松调用HTTP请求，而不需要直接封装HTTP请求报文。Feign通过注解处理，将请求模板化，实现实际的HTTP请求调用。

一、简介

Feign是一个" + name; } else { url = name; } url += cleanPath(); //@FeignClient没有配置url属性，返回有负载均衡功能的代理对象 return (T) loadBalance(builder, context, new HardCodedTarget<>(type, name, url)); } //如果指定了url，则生成默认的代理类 if (StringUtils.hasText(url) && !url.startsWith("" + url; } String url = this.url + cleanPath(); Client client = getOptional(context, Client.class); if (client != null) { if (client instanceof LoadBalancerFeignClient) { // not load balancing because we have a url, // but ribbon is on the classpath, so unwrap client = ((LoadBalancerFeignClient) client).getDelegate(); } if (client instanceof FeignBlockingLoadBalancerClient) { // not load balancing because we have a url, // but Spring Cloud LoadBalancer is on the classpath, so unwrap client = ((FeignBlockingLoadBalancerClient) client).getDelegate(); } builder.client(client); } Targeter targeter = get(context, Targeter.class); //生成默认代理类 return (T) targeter.target(this, builder, context, new HardCodedTarget<>(type, name, url)); } }

feign(context)

构建feign.builder，在构建时会向FeignContext获取配置的Encoder，Decoder等各种信息。FeignContext在上文中已经提到会为每个Feign客户端分配了一个容器，它们的父容器就是spring容器。

class FeignClientFactoryBean implements FactoryBean<Object>, InitializingBean, ApplicationContextAware { protected Feign.Builder feign(FeignContext context) { FeignLoggerFactory loggerFactory = get(context, FeignLoggerFactory.class); Logger logger = loggerFactory.create(type); // @formatter:off Feign.Builder builder = get(context, Feign.Builder.class) // required values .logger(logger) //日志 .encoder(get(context, Encoder.class)) //编码器 .decoder(get(context, Decoder.class)) //解码器 .contract(get(context, Contract.class));//验证器 // @formatter:on //处理了链接超时、读取超时等配置项 configureFeign(context, builder); return builder; } }

FeignClientFactoryBean#loadBalance

• 生成具备负载均衡能力的feign客户端，为feign客户端构建起绑定负载均衡客户端

class FeignClientFactoryBean implements FactoryBean<Object>, InitializingBean, ApplicationContextAware { protected <T> T loadBalance(Feign.Builder builder, FeignContext context, HardCodedTarget<T> target) { Client client = getOptional(context, Client.class); if (client != null) { builder.client(client); Targeter targeter = get(context, Targeter.class); return targeter.target(this, builder, context, target); } throw new IllegalStateException( "No Feign Client for loadBalancing defined. Did you forget to include spring-cloud-starter-netflix-ribbon?"); } }

FeignClientFactoryBean#getOptional(context, Client.class)

Client client = (Client)this.getOptional(context, Client.class); 从上下文中获取一个 Client，默认是LoadBalancerFeignClient。它是在FeignRibbonClientAutoConfiguration这个自动装配类中，通过Import实现的

@Import({ HttpClientFeignLoadBalancedConfiguration.class, OkHttpFeignLoadBalancedConfiguration.class, DefaultFeignLoadBalancedConfiguration.class }) public class FeignRibbonClientAutoConfiguration { //...... }

DefaultFeignLoadBalancedConfiguration

这里的通过 DefaultFeignLoadBalancedConfiguration 注入客户端 Client 的实现

@Configuration(proxyBeanMethods = false) class DefaultFeignLoadBalancedConfiguration { @Bean @ConditionalOnMissingBean public Client feignClient(CachingSpringLoadBalancerFactory cachingFactory, SpringClientFactory clientFactory) { return new LoadBalancerFeignClient(new Client.Default(null, null), cachingFactory, clientFactory); } }

targeter.target

接下去进入targeter.target(this, builder, context, target) ，携带着构建好的这些对象去创建代理实例 ，这里有两个实现 HystrixTargeter 、DefaultTargeter 很显然，我们没有配置 Hystrix ，这里会走 DefaultTargeter

class DefaultTargeter implements Targeter { @Override public <T> T target(FeignClientFactoryBean factory, Feign.Builder feign, FeignContext context, Target.HardCodedTarget<T> target) { return feign.target(target); } }

feign.target

然后会来到 feign.Feign.Builder#target(feign.Target<T>)

public abstract class Feign { public <T> T target(Target<T> target) { return build().newInstance(target); } public Feign build() { Client client = Capability.enrich(this.client, capabilities); Retryer retryer = Capability.enrich(this.retryer, capabilities); List<RequestInterceptor> requestInterceptors = this.requestInterceptors.stream() .map(ri -> Capability.enrich(ri, capabilities)) .collect(Collectors.toList()); Logger logger = Capability.enrich(this.logger, capabilities); Contract contract = Capability.enrich(this.contract, capabilities); Options options = Capability.enrich(this.options, capabilities); Encoder encoder = Capability.enrich(this.encoder, capabilities); Decoder decoder = Capability.enrich(this.decoder, capabilities); InvocationHandlerFactory invocationHandlerFactory = Capability.enrich(this.invocationHandlerFactory, capabilities); QueryMapEncoder queryMapEncoder = Capability.enrich(this.queryMapEncoder, capabilities); SynchronousMethodHandler.Factory synchronousMethodHandlerFactory = new SynchronousMethodHandler.Factory(client, retryer, requestInterceptors, logger, logLevel, decode404, closeAfterDecode, propagationPolicy, forceDecoding); ParseHandlersByName handlersByName = new ParseHandlersByName(contract, options, encoder, decoder, queryMapEncoder, errorDecoder, synchronousMethodHandlerFactory); return new ReflectiveFeign(handlersByName, invocationHandlerFactory, queryMapEncoder); } }

ReflectiveFeign.newInstance

最终会调用 ReflectiveFeign.newInstance



这个方法是用来创建一个动态代理的方法，在生成动态代理之前，会根据Contract协议（协议解析规则，解析接口类的注解信息，解析成内部的MethodHandler的处理方式。



从实现的代码中可以看到熟悉的Proxy.newProxyInstance方法产生代理类。而这里需要对每个定义的接口方法进行特定的处理实现，所以这里会出现一个MethodHandler的概念，就是对应方法级别的InvocationHandler。

public class ReflectiveFeign extends Feign { @Override public <T> T newInstance(Target<T> target) { // 解析接口注解信息 //根据接口类和Contract协议解析方式，解析接口类上的方法和注解，转换成内部的MethodHandler处理方式 Map<String, MethodHandler> nameToHandler = targetToHandlersByName.apply(target); Map<Method, MethodHandler> methodToHandler = new LinkedHashMap<Method, MethodHandler>(); List<DefaultMethodHandler> defaultMethodHandlers = new LinkedList<DefaultMethodHandler>(); // 根据方法类型 for (Method method : target.type().getMethods()) { if (method.getDeclaringClass() == Object.class) { continue; } else if (Util.isDefault(method)) { DefaultMethodHandler handler = new DefaultMethodHandler(method); defaultMethodHandlers.add(handler); methodToHandler.put(method, handler); } else { methodToHandler.put(method, nameToHandler.get(Feign.configKey(target.type(), method))); } } InvocationHandler handler = factory.create(target, methodToHandler); // 基于Proxy.newProxyInstance 为接口类创建动态实现，将所有的请求转换给InvocationHandler 处理。 T proxy = (T) Proxy.newProxyInstance(target.type().getClassLoader(), new Class<?>[] {target.type()}, handler); for (DefaultMethodHandler defaultMethodHandler : defaultMethodHandlers) { defaultMethodHandler.bindTo(proxy); } return proxy; } }

targetToHandlersByName.apply

targetToHandlersByName.apply(target) :根据Contract协议规则，解析接口类的注解信息，解析成内部表现：targetToHandlersByName.apply(target);会解析接口方法上的注解，从而解析出方法粒度的特定的配置信息，然后生产一个SynchronousMethodHandler 然后需要维护一个<method，MethodHandler>的map，放入InvocationHandler的实现FeignInvocationHandler中。

public class ReflectiveFeign extends Feign { static final class ParseHandlersByName { public Map<String, MethodHandler> apply(Target target) { List<MethodMetadata> metadata = contract.parseAndValidateMetadata(target.type()); Map<String, MethodHandler> result = new LinkedHashMap<String, MethodHandler>(); for (MethodMetadata md : metadata) { BuildTemplateByResolvingArgs buildTemplate; if (!md.formParams().isEmpty() && md.template().bodyTemplate() == null) { buildTemplate = new BuildFormEncodedTemplateFromArgs(md, encoder, queryMapEncoder, target); } else if (md.bodyIndex() != null) { buildTemplate = new BuildEncodedTemplateFromArgs(md, encoder, queryMapEncoder, target); } else { buildTemplate = new BuildTemplateByResolvingArgs(md, queryMapEncoder, target); } if (md.isIgnored()) { result.put(md.configKey(), args -> { throw new IllegalStateException(md.configKey() + " is not a method handled by feign"); }); } else { result.put(md.configKey(), factory.create(target, md, buildTemplate, options, decoder, errorDecoder)); } } return result; } } }

SpringMvcContract：当前Spring Cloud 微服务解决方案中，为了降低学习成本，采用了Spring MVC的部分注解来完成 请求协议解析，也就是说 ，写客户端请求接口和像写服务端代码一样：客户端和服务端可以通过SDK的方式进行约定，客户端只需要引入服务端发布的SDK API，就可以使用面向接口的编码方式对接服务。

OpenFeign调用过程 :

在前面的分析中，我们知道OpenFeign最终返回的是一个 ReflectiveFeign.FeignInvocationHandler 的对象。那么当客户端发起请求时，会进入到 FeignInvocationHandler.invoke 方法中，这个大家都知道，它是一个动态代理的实现。

public class ReflectiveFeign extends Feign { @Override public Object invoke(Object proxy, Method method, Object[] args) throws Throwable { if ("equals".equals(method.getName())) { try { Object otherHandler = args.length > 0 && args[0] != null ? Proxy.getInvocationHandler(args[0]) : null; return equals(otherHandler); } catch (IllegalArgumentException e) { return false; } } else if ("hashCode".equals(method.getName())) { return hashCode(); } else if ("toString".equals(method.getName())) { return toString(); } // 利用分发器筛选方法，找到对应的handler 进行处理 return dispatch.get(method).invoke(args); } }

SynchronousMethodHandler#invoke

而接着，在invoke方法中，会调用 this.dispatch.get(method)).invoke(args) 。this.dispatch.get(method) 会返回一个SynchronousMethodHandler，进行拦截处理。这个方法会根据参数生成完成的RequestTemplate对象，这个对象是Http请求的模版，代码如下。

final class SynchronousMethodHandler implements MethodHandler { @Override public Object invoke(Object[] argv) throws Throwable { RequestTemplate template = buildTemplateFromArgs.create(argv); Options options = findOptions(argv); Retryer retryer = this.retryer.clone(); while (true) { try { return executeAndDecode(template, options); } catch (RetryableException e) { try { retryer.continueOrPropagate(e); } catch (RetryableException th) { Throwable cause = th.getCause(); if (propagationPolicy == UNWRAP && cause != null) { throw cause; } else { throw th; } } if (logLevel != Logger.Level.NONE) { logger.logRetry(metadata.configKey(), logLevel); } continue; } } } }

SynchronousMethodHandler#executeAndDecode

经过上述的代码，我们已经将restTemplate拼装完成，上面的代码中有一个 executeAndDecode() 方法，该方法通过RequestTemplate生成Request请求对象，然后利用Http Client获取response，来获取响应信息。

final class SynchronousMethodHandler implements MethodHandler { Object executeAndDecode(RequestTemplate template, Options options) throws Throwable { //转化为Http请求报文 Request request = targetRequest(template); if (logLevel != Logger.Level.NONE) { logger.logRequest(metadata.configKey(), logLevel, request); } Response response; long start = System.nanoTime(); try { //发起远程通信 response = client.execute(request, options); //获取返回结果 response = response.toBuilder() .request(request) .requestTemplate(template) .build(); } catch (IOException e) { if (logLevel != Logger.Level.NONE) { logger.logIOException(metadata.configKey(), logLevel, e, elapsedTime(start)); } throw errorExecuting(request, e); } long elapsedTime = TimeUnit.NANOSECONDS.toMillis(System.nanoTime() - start); if (decoder != null) return decoder.decode(response, metadata.returnType()); CompletableFuture<Object> resultFuture = new CompletableFuture<>(); asyncResponseHandler.handleResponse(resultFuture, metadata.configKey(), response, metadata.returnType(),elapsedTime); try { if (!resultFuture.isDone()) throw new IllegalStateException("Response handling not done"); return resultFuture.join(); } catch (CompletionException e) { Throwable cause = e.getCause(); if (cause != null) throw cause; throw e; } } }

经过上面的分析，这里的 client.execute 的 client 的类型是LoadBalancerFeignClient

LoadBalancerFeignClient#execute

这里就很自然的进入 LoadBalancerFeignClient#execute

public class LoadBalancerFeignClient implements Client { @Override public Response execute(Request request, Request.Options options) throws IOException { try { URI asUri = URI.create(request.url()); String clientName = asUri.getHost(); URI uriWithoutHost = cleanUrl(request.url(), clientName); FeignLoadBalancer.RibbonRequest ribbonRequest = new FeignLoadBalancer.RibbonRequest( this.delegate, request, uriWithoutHost); IClientConfig requestConfig = getClientConfig(options, clientName); return lbClient(clientName) .executeWithLoadBalancer(ribbonRequest, requestConfig).toResponse(); } catch (ClientException e) { IOException io = findIOException(e); if (io != null) { throw io; } throw new RuntimeException(e); } } }

其实这个execute里面得流程就是 Ribbon 的那一套。我们可以简单的看一下。首先是构造URI，构造RibbonRequest，选择 LoadBalance，发起调用。



来看一下lbClient 选择负载均衡器的时候做了什么

public class LoadBalancerFeignClient implements Client { private FeignLoadBalancer lbClient(String clientName) { return this.lbClientFactory.create(clientName); } public FeignLoadBalancer create(String clientName) { FeignLoadBalancer client = this.cache.get(clientName); if (client != null) { return client; } IClientConfig config = this.factory.getClientConfig(clientName); ILoadBalancer lb = this.factory.getLoadBalancer(clientName); ServerIntrospector serverIntrospector = this.factory.getInstance(clientName, ServerIntrospector.class); client = this.loadBalancedRetryFactory != null ? new RetryableFeignLoadBalancer(lb, config, serverIntrospector, this.loadBalancedRetryFactory) : new FeignLoadBalancer(lb, config, serverIntrospector); this.cache.put(clientName, client); return client; } }

可以得出的结论就是 this.factory.getLoadBalancer(clientName) 跟Ribbon 源码里的获取方式一样，无疑这里获取的就是默认的 ZoneAwareLoadBalancer。然后包装成一个 FeignLoadBalancer 进行返回。



既然负载均衡器选择完了，那么一定还有个地方通过该负载去选择一个服务，接着往下看：

public abstract class AbstractLoadBalancerAwareClient<S extends ClientRequest, T extends IResponse> extends LoadBalancerContext implements IClient<S, T>, IClientConfigAware { public T executeWithLoadBalancer(final S request, final IClientConfig requestConfig) throws ClientException { LoadBalancerCommand<T> command = buildLoadBalancerCommand(request, requestConfig); try { return command.submit( new ServerOperation<T>() { @Override public Observable<T> call(Server server) { URI finalUri = reconstructURIWithServer(server, request.getUri()); S requestForServer = (S) request.replaceUri(finalUri); try { return Observable.just(AbstractLoadBalancerAwareClient.this.execute(requestForServer, requestConfig)); } catch (Exception e) { return Observable.error(e); } } }) .toBlocking() .single(); } catch (Exception e) { Throwable t = e.getCause(); if (t instanceof ClientException) { throw (ClientException) t; } else { throw new ClientException(e); } } } }

上面这段代码就是通过获取到的负载进行执行请求，但是这个时候 服务还没有选择，我们跟进去 submit 请求看一看究竟：

public class LoadBalancerCommand<T> { public Observable<T> submit(final ServerOperation<T> operation) { final ExecutionInfoContext context = new ExecutionInfoContext(); if (listenerInvoker != null) { try { listenerInvoker.onExecutionStart(); } catch (AbortExecutionException e) { return Observable.error(e); } } final int maxRetrysSame = retryHandler.getMaxRetriesOnSameServer(); final int maxRetrysNext = retryHandler.getMaxRetriesOnNextServer(); // Use the load balancer Observable<T> o = (server == null ? selectServer() : Observable.just(server)) .concatMap(new Func1<Server, Observable<T>>() { //省略...... }); //省略...... } }

可以看到这里有个 selectServer的方法 ，跟进去：

public class LoadBalancerCommand<T> { private final LoadBalancerContext loadBalancerContext; private Observable<Server> selectServer() { return Observable.create(new OnSubscribe<Server>() { @Override public void call(Subscriber<? super Server> next) { try { Server server = loadBalancerContext.getServerFromLoadBalancer(loadBalancerURI, loadBalancerKey); next.onNext(server); next.onCompleted(); } catch (Exception e) { next.onError(e); } } }); } } public class LoadBalancerContext implements IClientConfigAware { public Server getServerFromLoadBalancer(@Nullable URI original, @Nullable Object loadBalancerKey) throws ClientException { String host = null; int port = -1; if (original != null) { host = original.getHost(); } if (original != null) { Pair<String, Integer> schemeAndPort = deriveSchemeAndPortFromPartialUri(original); port = schemeAndPort.second(); } // Various Supported Cases // The loadbalancer to use and the instances it has is based on how it was registered // In each of these cases, the client might come in using Full Url or Partial URL ILoadBalancer lb = getLoadBalancer(); if (host == null) { // Partial URI or no URI Case // well we have to just get the right instances from lb - or we fall back if (lb != null){ Server svc = lb.chooseServer(loadBalancerKey); if (svc == null){ throw new ClientException(ClientException.ErrorType.GENERAL, "Load balancer does not have available server for client: " + clientName); } host = svc.getHost(); if (host == null){ throw new ClientException(ClientException.ErrorType.GENERAL, "Invalid Server for :" + svc); } logger.debug("{} using LB returned Server: {} for request {}", new Object[]{clientName, svc, original}); return svc; } else { // No Full URL - and we dont have a LoadBalancer registered to // obtain a server // if we have a vipAddress that came with the registration, we // can use that else we // bail out if (vipAddresses != null && vipAddresses.contains(",")) { throw new ClientException( ClientException.ErrorType.GENERAL, "Method is invoked for client " + clientName + " with partial URI of (" + original + ") with no load balancer configured." + " Also, there are multiple vipAddresses and hence no vip address can be chosen" + " to complete this partial uri"); } else if (vipAddresses != null) { try { Pair<String,Integer> hostAndPort = deriveHostAndPortFromVipAddress(vipAddresses); host = hostAndPort.first(); port = hostAndPort.second(); } catch (URISyntaxException e) { throw new ClientException( ClientException.ErrorType.GENERAL, "Method is invoked for client " + clientName + " with partial URI of (" + original + ") with no load balancer configured. " + " Also, the configured/registered vipAddress is unparseable (to determine host and port)"); } } else { throw new ClientException( ClientException.ErrorType.GENERAL, this.clientName + " has no LoadBalancer registered and passed in a partial URL request (with no host:port)." + " Also has no vipAddress registered"); } } } else { // Full URL Case // This could either be a vipAddress or a hostAndPort or a real DNS // if vipAddress or hostAndPort, we just have to consult the loadbalancer // but if it does not return a server, we should just proceed anyways // and assume its a DNS // For restClients registered using a vipAddress AND executing a request // by passing in the full URL (including host and port), we should only // consult lb IFF the URL passed is registered as vipAddress in Discovery boolean shouldInterpretAsVip = false; if (lb != null) { shouldInterpretAsVip = isVipRecognized(original.getAuthority()); } if (shouldInterpretAsVip) { Server svc = lb.chooseServer(loadBalancerKey); if (svc != null){ host = svc.getHost(); if (host == null){ throw new ClientException(ClientException.ErrorType.GENERAL, "Invalid Server for :" + svc); } logger.debug("using LB returned Server: {} for request: {}", svc, original); return svc; } else { // just fall back as real DNS logger.debug("{}:{} assumed to be a valid VIP address or exists in the DNS", host, port); } } else { // consult LB to obtain vipAddress backed instance given full URL //Full URL execute request - where url!=vipAddress logger.debug("Using full URL passed in by caller (not using load balancer): {}", original); } } // end of creating final URL if (host == null){ throw new ClientException(ClientException.ErrorType.GENERAL,"Request contains no HOST to talk to"); } // just verify that at this point we have a full URL return new Server(host, port); } }

可以看到的是这里获取到了之前构造好的 ZoneAwareLoadBalancer 然后调用 chooseServer 方法获取server ，这个是跟Ribbon 中是一样的流程。



获取到了server 后，会回调先前 executeWithLoadBalancer 方法里构造的 ServerOperation 的 call 方法：

return command.submit( new ServerOperation<T>() { @Override public Observable<T> call(Server server) { URI finalUri = reconstructURIWithServer(server, request.getUri()); S requestForServer = (S) request.replaceUri(finalUri); try { return Observable.just(AbstractLoadBalancerAwareClient.this.execute(requestForServer, requestConfig)); } catch (Exception e) { return Observable.error(e); } } }) .toBlocking() .single();

然后会执行 AbstractLoadBalancerAwareClient.this.execute(requestForServer, requestConfig) 进行最后的调用，实际上这里走的是 FeignLoadBalancer#execute

public class FeignLoadBalancer extends AbstractLoadBalancerAwareClient<FeignLoadBalancer.RibbonRequest, FeignLoadBalancer.RibbonResponse> { @Override public RibbonResponse execute(RibbonRequest request, IClientConfig configOverride) throws IOException { Request.Options options; if (configOverride != null) { RibbonProperties override = RibbonProperties.from(configOverride); options = new Request.Options(override.connectTimeout(this.connectTimeout), override.readTimeout(this.readTimeout)); } else { options = new Request.Options(this.connectTimeout, this.readTimeout); } Response response = request.client().execute(request.toRequest(), options); return new RibbonResponse(request.getUri(), response); } }

而这里调用的request.client().execute(request.toRequest(), options) 则是 DefaultFeignLoadBalancedConfiguration 注入的 LoadBalancerFeignClient ，在构造 LoadBalancerFeignClient 的时候 ，传递了个 feign.Client.Default ，然后利用 feign.Client.Default 构造了一个 RibbonRequest。



所以这里走 feign.Client.Default#execute ：

public interface Client { class Default implements Client { @Override public Response execute(Request request, Options options) throws IOException { HttpURLConnection connection = convertAndSend(request, options); return convertResponse(connection, request); } } }

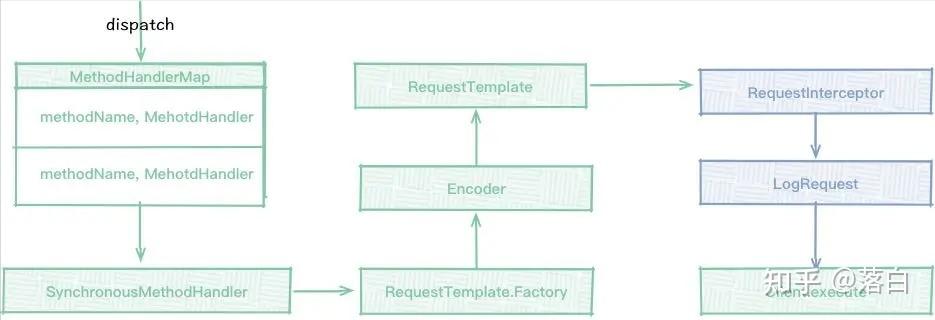

利用 JDK 提供的 HttpURLConnection 发起远程的 HTTP通讯。至此发起请求的流程就完成了。下面附上一张这个过程的流程图：

对于Ribbon的调用过程请参考：www.jianshu.com/p/f3db11f045cc

OpenFeign Configuration ：

针对 feign 的 Configuration，官方给我们提供了很多的个性化配置，具体可以参考 org.springframework.cloud.openfeign.FeignClientProperties.FeignClientConfiguration

public static class FeignClientConfiguration { // 日志 private Logger.Level loggerLevel; // 连接超时 private Integer connectTimeout; private Integer readTimeout; //重试 private Class<Retryer> retryer; //解码 private Class<ErrorDecoder> errorDecoder; private List<Class<RequestInterceptor>> requestInterceptors; // 编码 private Boolean decode404; private Class<Decoder> decoder; private Class<Encoder> encoder; // 解析 private Class<Contract> contract; private ExceptionPropagationPolicy exceptionPropagationPolicy; }

这里举个简单的例子，以Logger 为例。我们想为每个不同的 FeignClient 设置日志级别。

1、添加配置类：

@Configuration public class FooConfiguration { @Bean Logger.Level feignLoggerLevel() { return Logger.Level.FULL; } }

2、配置日志级别 ,logging.level + FeignClient 包的全路径。

logging.level.com.wuzz.FeignClientService: DEBUG

就这样就配置完成了。重启服务就可以看到效果。



参考： www.cnblogs.com/lucky-yqy/p/14589434.html

www.cnblogs.com/wuzhenzhao/p/13680807.html
