目录

• python Xarray处理设置二维数组作为coordinates
• Xarray(python)读取​Sentinel-5P(S5P)哨兵数据
• 使用panoly可视化
• 使用python里的工具包读取
• 不足使用xarray读取含Groups的嵌套文件如.nc4时
• 总结

python Xarray处理设置二维数组作为coordinates

因为想做笔记，所以直接做的很粗糙了，后面再更新！

import cv2 import numpy as np from osgeo import gdal import os import xarray as xr import matplotlib.pyplot as plt import matplotlib as mpl fig, ax = plt.subplots(figsize=(6, 1)) fig.subplots_adjust(bottom=0.5) cmap = mpl.cm.cool norm = mpl.colors.Normalize(vmin=5, vmax=10) fig.colorbar(mpl.cm.ScalarMappable(norm=norm, cmap=cmap), cax=ax, orientation='horizontal', label='Some Units') """ res = cv2.resize(RasterArrray, dsize=(441,251), interpolation=cv2.INTER_CUBIC) Here img is thus a numpy array containing the original image, whereas res is a numpy array containing the resized image. An important aspect is the interpolation parameter: there are several ways how to resize an image. Especially since you scale down the image, and the size of the original image is not a multiple of the size of the resized image. Possible interpolation schemas are: INTER_NEAREST - a nearest-neighbor interpolation INTER_LINEAR - a bilinear interpolation (used by default) INTER_AREA - resampling using pixel area relation. It may be a preferred method for image decimation, as it gives moire'-free results. But when the image is zoomed, it is similar to the INTER_NEAREST method. INTER_CUBIC - a bicubic interpolation over 4x4 pixel neighborhood INTER_LANCZOS4 - a Lanczos interpolation over 8x8 pixel neighborhood """ def GetTimeSerises_nc(ncVariable): """ 获取 时间序列 :param ncVariable: :return: """ timeSerises = ncVariable.time.data return timeSerises inNcFile = r"./solar-1979-01.nc" inNc = xr.open_dataset(inNcFile) print(inNc) print(inNc.LATIXY.data) import pandas as pd # 创建 dataset ds = xr.Dataset() numLon = 1400 numLat = 800 # LATIXY LONGXY inLat = inNc.LATIXY.data inLon = inNc.LONGXY.data # print("np.min(inLon):{}, np.max(inLon):{}".format(np.min(inLon), np.max(inLon))) # print("np.min(inLat):{}, np.max(inLat):{}".format(np.min(inLat), np.max(inLat))) lon = np.linspace(np.min(inLon), np.max(inLon), num=numLon, endpoint=True, retstep=False, dtype=None, axis=0) lat = np.linspace(np.min(inLat), np.max(inLat), num=numLat, endpoint=True, retstep=False, dtype=None, axis=0) lon, lat = np.meshgrid(lon, lat) ds = ds.assign_coords({ "lat": (["x", "y"], lat), "lon": (["x", "y"], lon) }) solor = np.full(shape=(10, numLat, numLon) , fill_value= np.nan ) ncVariable = inNc.FSDS timeSerises = GetTimeSerises_nc(ncVariable) i = 0 for timeSerise in timeSerises[0:10]: print(timeSerise) # 获取数据 arr = inNc.FSDS.loc[timeSerise].data print(arr.shape) solor[i,:,:] = cv2.resize(arr, dsize=(numLon,numLat), interpolation = cv2.INTER_LINEAR) print(arr.shape) i= i+1 print(i) ds["solor"] = xr.DataArray(solor, dims=['time','x', 'y'], ) ds.coords['time'] = pd.date_range(start='1979-01-01',periods=10,freq='3H') # ds["lat"] = xr.DataArray(lat, dims=['lat'], ) # ds["lon"] = xr.DataArray(lon, dims=['lon'], ) print(ds) ds.to_netcdf(r"./test_1.nc")

主要解决问题的代码块在这里：

lon = np.linspace(np.min(inLon), np.max(inLon), num=numLon, endpoint=True, retstep=False, dtype=None, axis=0) lat = np.linspace(np.min(inLat), np.max(inLat), num=numLat, endpoint=True, retstep=False, dtype=None, axis=0) lon, lat = np.meshgrid(lon, lat) ds = ds.assign_coords({ "lat": (["x", "y"], lat), "lon": (["x", "y"], lon) }) ds["solor"] = xr.DataArray(solor, dims=['time','x', 'y'], ) ds.coords['time'] = pd.date_range(start='1979-01-01',periods=10,freq='3H')

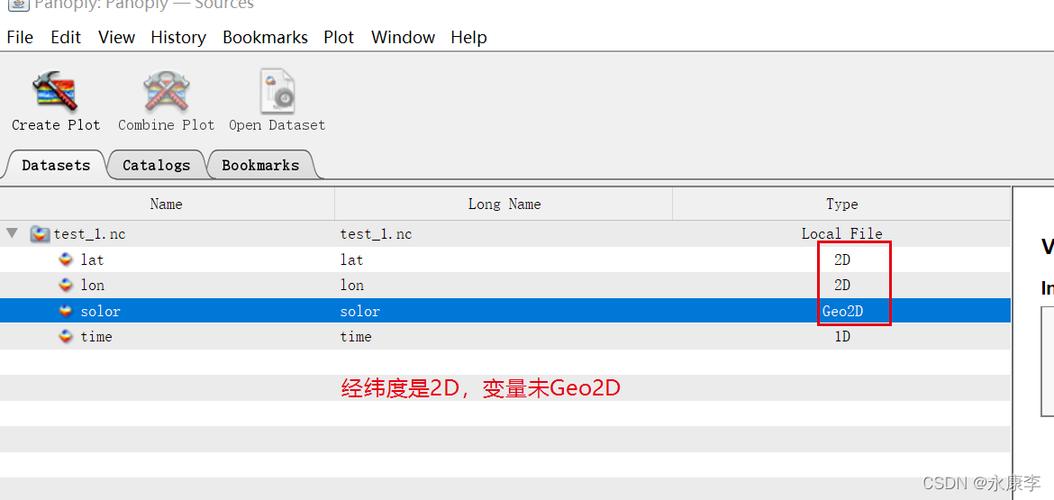

结果：

参考链接stackoverflow.com/questions/67695672/xarray-set-new-2d-coordinate-as-dimension

Xarray(python)读取​Sentinel-5P(S5P)哨兵数据

需求分析：NC文件的常规包netcdf4使用手感较xarray略显笨拙，故尝试使用xarray读取包含Group的.nc4文件

数据：S5P二级数据：S5P_RPRO_L2__HCHO， 来源：欧洲哥白尼，或NASA（推荐，因为好下载）

使用panoly可视化

（1）导入后的界面：

（2）选择变量后，点击Create Plot按钮可视化：

即可得到HCHO的Plot图以及Array可视化。

使用python里的工具包读取

import os import xarray as xr import netCDF4 as nc # 对于nc4文件，其内含groups， Dir = ['../S5P_Pre/Wget_HCHO'] # 时间跨度180514 ~ 190805 file = os.listdir(Dir[0]) file.sort(key = lambda x:int(x.split('___')[1][:8])) # 按年月日排序 # （1）使用nc包打开 ns = nc.Dataset(os.path.join(Dir[0], file[0])) #这里的数据存储在groups里面的PRODUCT里面 hcho = ns['PRODUCT']['formaldehyde_tropospheric_vertical_column'][:] # (2) 使用xarray包打开 —— 推荐方式 xs = xr.open_dataset(os.path.join(Dir[0], file[0]), group = 'PRODUCT') # 这里需用group函数指定组名称

（1）netcdf4的读取结果：

In[29]: ns Out[29]: Subset parameters: {"PRODUCT": ["S5P_L2__HCHO__.1"], "INFILENAMES": ["S5P_RPRO_L2__HCHO___20180514T023918_20180514T042246_03018_01_010105_20190203T205044.nc"], "INFILETYPE": ["nc"], "OUTFILETYPE": ["nc4"], "TIMENAME": [["TROP2010", "/PRODUCT/time", "/PRODUCT/delta_time"]], "VARNAMES": ["/PRODUCT/formaldehyde_tropospheric_vertical_column", "/PRODUCT/qa_value", "/PRODUCT/time_utc", "/PRODUCT/scanline", "/PRODUCT/ground_pixel"], "BOXLONRANGE": [73.0, 136.0], "BOXLATRANGE": [3.0, 54.0], "TIMERANGE": [800414432.0, 800496009.0], "GRIDTYPES": ["SWATH"], "CONVERTFILETYPE": [true]} dimensions(sizes): variables(dimensions): groups: PRODUCT, METADATA In[30]: ns['PRODUCT'] Out[30]: <class 'netCDF4._netCDF4.Group'> group /PRODUCT: dimensions(sizes): time(1), scanline(725), ground_pixel(237) variables(dimensions): uint16 time_idx(time), uint16 scanline_idx(scanline), uint16 ground_pixel_idx(ground_pixel), float32 longitude(time,scanline,ground_pixel), float32 latitude(time,scanline,ground_pixel), int32 time(time), int32 delta_time(time,scanline,ground_pixel), float32 formaldehyde_tropospheric_vertical_column(time,scanline,ground_pixel), uint8 qa_value(time,scanline,ground_pixel), <class 'str'> time_utc(time,scanline), int32 scanline(scanline), int32 ground_pixel(ground_pixel) groups: SUPPORT_DATA In[31]: ns['PRODUCT'].variables.keys() Out[31]: dict_keys(['time_idx', 'scanline_idx', 'ground_pixel_idx', 'longitude', 'latitude', 'time', 'delta_time', 'formaldehyde_tropospheric_vertical_column', 'qa_value', 'time_utc', 'scanline', 'ground_pixel'])

(2) xarray的读取结果:

xs Out[34]: <xarray.Dataset> Dimensions: (ground_pixel: 237, scanline: 725, time: 1) Coordinates: * time (time) datetime64[ns] 2018-05-14 * scanline (scanline) float64 1.507e+03 .... * ground_pixel (ground_pixel) float64 1.0 ...... Data variables: time_idx (time) float32 0.0 scanline_idx (scanline) float32 1.506e+03 .... ground_pixel_idx (ground_pixel) float32 0.0 ...... longitude (time, scanline, ground_pixel) float32 ... latitude (time, scanline, ground_pixel) float32 ... delta_time (time, scanline, ground_pixel) timedelta64[ns] ... formaldehyde_tropospheric_vertical_column (time, scanline, ground_pixel) float32 ... qa_value (time, scanline, ground_pixel) float32 ... time_utc (time, scanline) object nan .....

不足使用xarray读取含Groups的嵌套文件如.nc4时

需要先知道其所在的Gropus名称，即需要先用panoly软件或nc4包打开。

总结
