haproxy keepalived如何实现负载均衡与高可用性？

本文共计1036个文字，预计阅读时间需要5分钟。

部署两台HAProxy+Keepalived节点服务，192.168.119.20作为master，192.168.119.21作为backup，配置软件仓库root@haproxyB:~

  部署两台haproxy+keepalived节点服务

  192.168.119.20 为master

  192.168.119.21 为backup

  配置软件仓库

root@haproxyB:~# cat /etc/apt/sources.list # 默认注释了源码镜像以提高 apt update 速度，如有需要可自行取消注释 deb mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal main restricted universe multiverse # deb-src mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal main restricted universe multiverse deb mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-updates main restricted universe multiverse # deb-src mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-updates main restricted universe multiverse deb mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-backports main restricted universe multiverse # deb-src mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-backports main restricted universe multiverse deb mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-security main restricted universe multiverse # deb-src mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-security main restricted universe multiverse # 预发布软件源，不建议启用 # deb mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-proposed main restricted universe multiverse # deb-src mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-proposed main restricted universe multiverse

  

  部署keepalived和haproxy

root@haproxyA:~# apt install keepalived haproxy -y

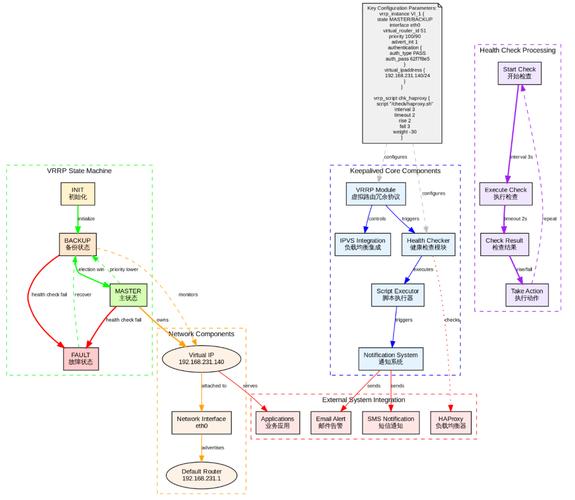

  配置keepalived

  复制模板文件到服务配置文件目录

root@haproxyA:~# cp /usr/share/doc/keepalived/samples/keepalived.conf.vrrp /etc/keepalived/ root@haproxyA:~# cd /etc/keepalived/ root@haproxyA:/etc/keepalived# ll total 16 drwxr-xr-x 2 root root 34 Jul 20 22:46 ./ drwxr-xr-x 104 root root 8192 Jul 20 22:41 ../ -rw-r--r-- 1 root root 1445 Jul 20 22:46 keepalived.conf.vrrp root@haproxyA:/etc/keepalived# cp keepalived.conf.vrrp keepalived.conf root@haproxyA:/etc/keepalived# vim keepalived.conf

  

  修改生成新的配置文件

  master主节点配置

root@haproxyA:/etc/keepalived# cat keepalived.conf ! Configuration File for keepalived global_defs { #全局配置 notification_email { acassen } notification_email_from Alexandre.Cassen@firewall.loc smtp_server 192.168.200.1 #邮件服务器 smtp_connect_timeout 30 router_id LVS_20 #MASTER的id与BACKUP不同 } vrrp_instance VI_1 { #单实例，名称为VI_1 state MASTER #主配置为MASTER interface eth0 #设定绑定VIP的网络接口 garp_master_delay 10 smtp_alert virtual_router_id 51 #主和备的id单实例下必须一致，路由器唯一表示 priority 100 #主的优先级大于备，范围是在50以内 advert_int 1 #vrrp的消息发送间隔1秒 authentication { auth_type PASS #vrrp之间的验证采用明文 auth_pass 1111 #密码 } virtual_ipaddress { 192.168.119.188 dev eth0 label eth0:1 #设置RS的VIP地址，如果没有后跟接口，则默认选择单实例下的interface eth0 192.168.119.189 dev eth0 label eth0:2 #↑ 192.168.119.190 dev eth0 label eth0:3 #↑ 192.168.119.191 dev eth0 label eth0:4 #↑ 192.168.119.192 dev eth0 label eth0:5 #同上 } } #启动master keeplalived root@haproxyA:/etc/keepalived# systemctl enable keepalived --now

  

  

 

  backup节点配置 

root@haproxyB:/etc/keepalived# cat keepalived.conf ! Configuration File for keepalived global_defs { notification_email { acassen } notification_email_from Alexandre.Cassen@firewall.loc smtp_server 192.168.200.1 smtp_connect_timeout 30 router_id LVS_21 } vrrp_instance VI_1 { state BACKUP interface eth0 garp_master_delay 10 smtp_alert virtual_router_id 51 priority 50 advert_int 1 authentication { auth_type PASS auth_pass 1111 } virtual_ipaddress { 192.168.119.188 dev eth0 label eth0:1 192.168.119.189 dev eth0 label eth0:2 192.168.119.190 dev eth0 label eth0:3 192.168.119.191 dev eth0 label eth0:4 192.168.119.192 dev eth0 label eth0:5 } } #启动keepalived root@haproxyB:/etc/keepalived# systemctl enable keepalived --now

  VIP切换测试

  停掉master keeaplived，停止master节点keepavlived服务同时，vip地址已经全部切换到了backup节点上的keepalived实例。icmp测试无感

  

  配置haproxy

  两台haproxy配置相同的文件

root@haproxyA:~# cat /etc/haproxy/haproxy.cfg global log /dev/log local0 log /dev/log local1 notice chroot /var/lib/haproxy stats socket /run/haproxy/admin.sock mode 660 level admin expose-fd listeners stats timeout 30s user haproxy group haproxy daemon # Default SSL material locations ca-base /etc/ssl/certs crt-base /etc/ssl/private # See: ssl-config.mozilla.org/#server=haproxy&server-version=2.0.3&config=intermediate ssl-default-bind-ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384 ssl-default-bind-ciphersuites TLS_AES_128_GCM_SHA256:TLS_AES_256_GCM_SHA384:TLS_CHACHA20_POLY1305_SHA256 ssl-default-bind-options ssl-min-ver TLSv1.2 no-tls-tickets defaults log global mode http option httplog option dontlognull timeout connect 5000 timeout client 50000 timeout server 50000 errorfile 400 /etc/haproxy/errors/400.http errorfile 403 /etc/haproxy/errors/403.http errorfile 408 /etc/haproxy/errors/408.http errorfile 500 /etc/haproxy/errors/500.http errorfile 502 /etc/haproxy/errors/502.http errorfile 503 /etc/haproxy/errors/503.http errorfile 504 /etc/haproxy/errors/504.http listen harbor-80 bind 192.168.119.189:80 mode tcp server server1 192.168.119.10:80 check inter 3s fall 3 rise 3 listen harbor-443 bind 192.168.119.189:443 mode tcp server server1 192.168.119.10:443 check inter 3s fall 3 rise 3

  

  测试访问：
