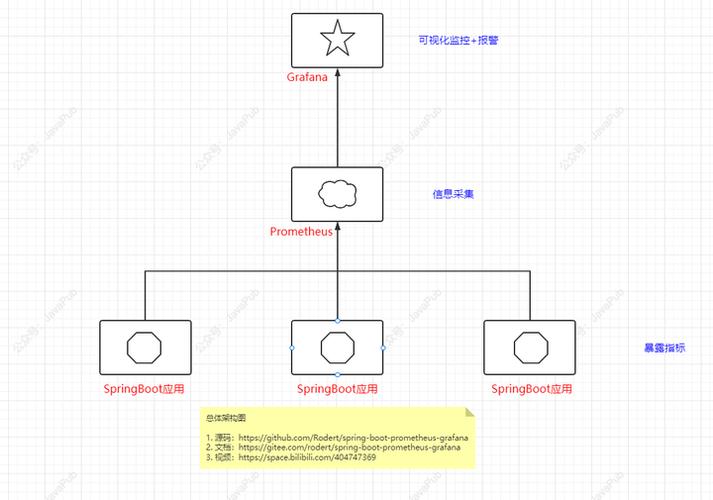

Spring Boot 2.X如何实现与Prometheus监控的深度整合？

本文共计1084个文字，预计阅读时间需要5分钟。

Spring Boot 2.x 暴露健康状态，通过 Prometheus 监控，添加依赖：

xml org.springframework.boot spring-boot-starter-actuator

springboot2.x暴露健康状况通过prometheus监控

加入依赖

<!--prometheus监控 prometheus.io/docs/introduction/overview/--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency> <dependency> <groupId>io.micrometer</groupId> <artifactId>micrometer-registry-prometheus</artifactId> </dependency> <!--prometheus监控 prometheus.io/docs/introduction/overview/-->

application.yml加入相关配置

management: security: enabled: false #prometheus+grafana+springboot2监控集成配置 metrics: export: prometheus: enabled: true jmx: enabled: true endpoints: web: exposure: include: '*' base-path: /metrics #prometheus+grafana+springboot2监控集成配置

主启动类加入配置

package com.drore.saas; import com.drore.saas.services.service.StorageService; import io.micrometer.core.instrument.MeterRegistry; import org.springframework.boot.CommandLineRunner; import org.springframework.boot.SpringApplication; import org.springframework.boot.actuate.autoconfigure.metrics.MeterRegistryCustomizer; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.boot.web.servlet.ServletComponentScan; import org.springframework.context.annotation.Bean; @SpringBootApplication @ServletComponentScan public class TenantappApplication { public static void main(String[] args) { SpringApplication.run(TenantappApplication.class, args); } @Bean CommandLineRunner init(StorageService storageService) { return (args) -> { storageService.init(); }; } #prometheus+grafana+springboot2监控集成配置 @Bean MeterRegistryCustomizer meterRegistryCustomizer(MeterRegistry meterRegistry) { return meterRegistry1 -> { meterRegistry.config() .commonTags("application", "Tenantapp"); }; } #prometheus+grafana+springboot2监控集成配置 }

启动之后通过路径访问查看健康状况

xxxxxx/metrics/prometheus

查看到的数据如下：

[root@saas98 /]$ curl "10.98.94.220:80/ts/metrics/prometheus" # HELP process_start_time_seconds Start time of the process since unix epoch. # TYPE process_start_time_seconds gauge process_start_time_seconds{application="Tenantapp",} 1.556068841226E9 # HELP tomcat_threads_busy_threads # TYPE tomcat_threads_busy_threads gauge tomcat_threads_busy_threads{application="Tenantapp",name="github.com/coreos/prometheus-operator.git

已经移植到

github.com/coreos/kube-prometheus.git

具体原因参照官网。

下面也有自己总结的文档的地址，大家可以参照下：

github.com/hkj123/kube-prometheus-manifests.git

具体的文件如下图展示，这里有很多文件，我们只介绍关注的几个文件，其他的可以参照官网了解：

构建springboot项目的时候需要注意的点：

--- kind: Service apiVersion: v1 metadata: labels: app: ms #prometheus配置监控需要通过app去监控，这个k8s-app和app都可以 namespace: drore-saas name: ms spec: ports: - name: github.com/coreos/kube-prometheus/manifests

提供了一套整合的例子：

需要修改的文件: prometheus-clusterRole.yaml

默认的文件内容：

apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: name: prometheus-k8s rules: - apiGroups: - "" resources: - nodes/metrics verbs: - get - nonResourceURLs: - /metrics verbs: - get

可以发现这里的监控的resources：- nodes/metrics

我们需要监控自己构建的java应用需要扩大权限

apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: name: prometheus-k8s rules: - apiGroups: - "" resources: - nodes - services - endpoints - pods - nodes/proxy verbs: - get - list - watch - apiGroups: - "" resources: - configmaps - nodes/metrics verbs: - get - nonResourceURLs: - /metrics verbs: - get

书写monitor监控文件，提供了一下参考的文件：prometheus-serviceMonitor.yaml

自己编写的 ：prometheus-serviceMonitorSelfServiceMs.yaml

apiVersion: monitoring.coreos.com/v1 kind: ServiceMonitor metadata: name: drore-saas-ms namespace: monitoring spec: endpoints: - interval: 15s port: 118.31.17.205:31144/targets

报警规则可以通过 prometheus-rules.yaml 去配置

参考

github.com/coreos/prometheus-operator

补充：spring boot2.x暴露监控endpoint并配置prometheus及grafana对多个targets进行监控

1. build.gradle中添加依赖

compile group: 'org.springframework.boot', name: 'spring-boot-starter-actuator' compile group: 'org.springframework.boot', name: 'spring-boot-starter-security' compile('io.micrometer:micrometer-registry-prometheus')

2. spring boot 2.x暴露信息

不同于之前的Actuator 1.x，Actuator 2.x 的大多数端点默认被禁掉。 Actuator 2.x 中的默认端点增加了/actuator前缀。

3. spring boot服务端改造

配置信息

server.port=8085 management.endpoints.web.exposure.include=prometheus management.endpoint.metrics.enabled=true spring.security.user.name=xxx spring.security.user.password=123456 spring.security.user.roles=ACTUATOR_ADMIN management.server.port=8090 management.endpoints.web.base-path=/admin

指定权限

@Configuration public class ActuatorSecurityConfig extends WebSecurityConfigurerAdapter { @Override protected void configure(HttpSecurity 192.168.211.2:8090/admin/prometheus

输入用户名 密码

4. Prometheus监控多个spring boot服务

下载prometheus-2.11.1.linux-amd64.tar.gz

编写配置文件prometheus.yml

global: scrape_interval: 10s scrape_timeout: 10s evaluation_interval: 10m scrape_configs: - job_name: app-gateway scrape_interval: 5s scrape_timeout: 5s metrics_path: /admin/prometheus scheme: 192.168.211.101:9090/targets

可以看到

5. grafana可视化监控多个prometheus targets

下载grafana-6.2.5.linux-amd64.tar.gz

启动grafana

./grafana-server &

192.168.211.101:3000

在dashboard中配置时，要采用这样的方式

jvm_gc_pause_seconds_count{action="end of minor GC",cause="Metadata GC Threshold",instance="192.168.211.2:8090",job="search"}

通过instance和job来进行区分prometheus的targets

可以看到dashboard中有两个prometheus的targets

以上为个人经验，希望能给大家一个参考，也希望大家多多支持易盾网络。如有错误或未考虑完全的地方，望不吝赐教。
