K8s 新版本部署 Ingress-nginx controller 本篇主要记录以下内容：

1.K8s 新版本 1.23.5 中如何搭建 ingress controller

2.注意事项：版本差异及配置要点

环境准备：

1.K8s 集群已部署

2.K8s 版本为 1.23.5

3.Helm 3 工具已安装

步骤：

1.创建命名空间

bashkubectl create ns ingress-nginx

2.安装 Ingress-nginx

bashhelm install ingress-nginx ingress-nginx/ingress-nginx -n ingress-nginx

3.验证 Ingress-nginx 是否安装成功

bashkubectl get pods -n ingress-nginx

4.创建 Ingress 资源

yamlapiVersion: networking.k8s.io/v1kind: Ingressmetadata: name: example-ingress namespace: ingress-nginxspec: rules: - host: example.com http: paths: - path: / pathType: Prefix backend: service: name: example-service port: number: 80

5.验证 Ingress 是否生效

bashcurl example.com

注意事项：

1.版本差异：新旧版本在配置上可能存在差异，需参考官方文档或社区讨论

2.配置要点：根据实际需求调整配置，如：SSL 证书、负载均衡等

3.资源需求：Ingress-nginx 需要一定数量的资源，如 CPU、内存等，请根据实际情况调整资源配额

k8s 新版本部署 Ingress-nginx controller

本篇主要记录一下 k8s 新版本 1.23.5 中如何搭建 ingress controller 以及里面的注意项

新版本和老版本区别有不少，坑很多，只能从官网一点点撸

1.环境准备

操作系统：Centos7 （CentOS Linux release 7.9.2009）
Master 主节点： 1台虚拟机
Node 计算节点： 2台虚拟机
K8s version：v1.23.5 （选的较新的版本）
Docker version：20.10.14

环境和上一篇中 kubeadm 搭建 k8s 的一致

2.概述

下面从官网摘取的对于 Ingress 的介绍

2.1 什么是 Ingress

Ingress 是对集群中服务的外部访问进行管理的 API 对象，典型的访问方式是 HTTP。Ingress 可以提供负载均衡

Ingress 公开了从集群外部到集群内服务的 HTTP 和 HTTPS 路由。流量路由由 Ingress 资源上定义的规则控制。

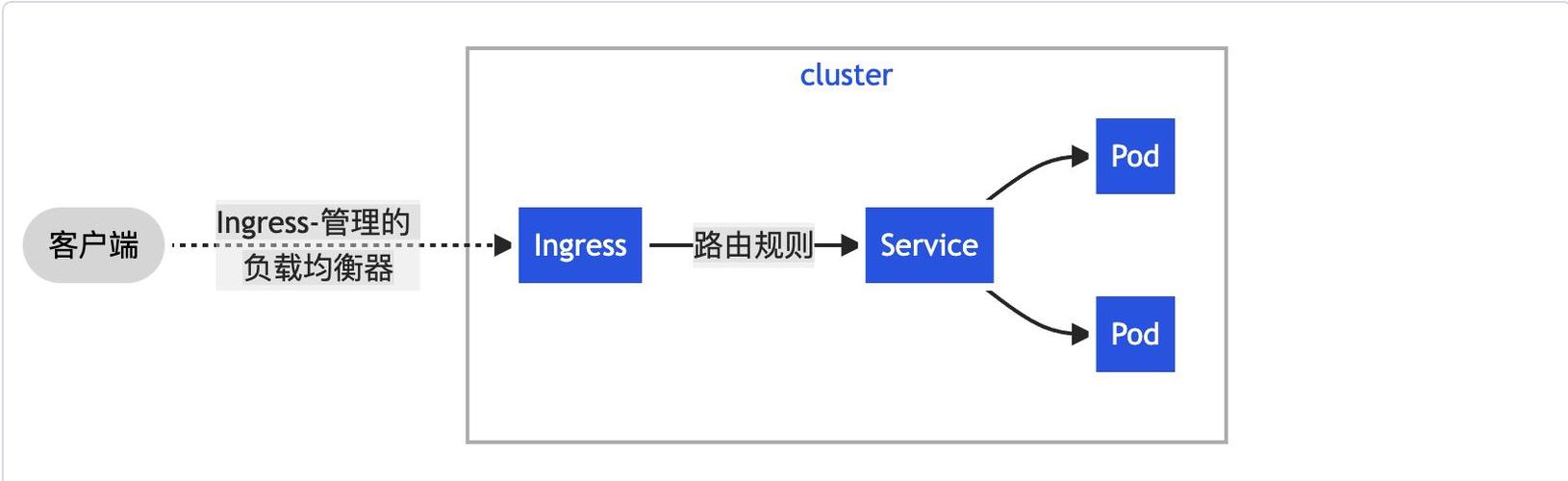

下面是一个将所有流量都发送到同一 Service 的简单 Ingress 示例：

但是仅创建 Ingress 资源本身没有任何效果，需要有对应的 Ingress 控制器，你可能需要部署 Ingress 控制器，例如 ingress-nginx。你可以从许多 Ingress 控制器中进行选择。

2.2 什么是 Ingress controller

为了让 Ingress 资源工作，集群必须有一个正在运行的 Ingress 控制器。k8s官网维护了 3 个Ingress控制器

目前支持和维护 AWS、 GCE 和 Nginx Ingress 控制器，本篇就拿 Ingress-nginx 作为控制器为例讲解一下如何部署

还有一些社区等提供的控制器

3.部署 Ingress-nginx controller

本篇就拿最常用的 Ingress-nginx 作为 Ingress的控制器，实现k8s 把请求重定向到集群内部（Cluster Ip）服务去

3.1 deploy.yaml 坑点

Ingress-nginx 官网 kubernetes.github.io/ingress-nginx/ 提到了 deploy.yaml 文件

Ingress-nginx 新版本的 depoly.yaml 有些不同，需要拉取下面2个镜像

k8s.gcr.io/ingress-nginx/controller:v1.1.2

k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1

多半是下载不到的，所以需要自己替换一下，可以去docker hub 上找到对应的镜像文件

总结坑点：

新版本中提供了 IngressClass ，需要在编写 Ingress 的时候指定
Image 加载不到，需要手动去 docker hub 上找其他的并且修改 deploy.yaml文件
把 ingress-nginx-controller 使用 hostNetwork: true 进行部署比 NodePort 减少一层转发，但是需要指定选择打了标签的 node nodeSelector: app: ingress

3.2 deploy.yaml 样例（我自己修改后的可以参考）

#GENERATED FOR K8S 1.20 apiVersion: v1 kind: Namespace metadata: labels: app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx name: ingress-nginx --- apiVersion: v1 automountServiceAccountToken: true kind: ServiceAccount metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx namespace: ingress-nginx --- apiVersion: v1 kind: ServiceAccount metadata: annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-admission namespace: ingress-nginx --- apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx namespace: ingress-nginx rules: - apiGroups: - "" resources: - namespaces verbs: - get - apiGroups: - "" resources: - configmaps - pods - secrets - endpoints verbs: - get - list - watch - apiGroups: - "" resources: - services verbs: - get - list - watch - apiGroups: - networking.k8s.io resources: - ingresses verbs: - get - list - watch - apiGroups: - networking.k8s.io resources: - ingresses/status verbs: - update - apiGroups: - networking.k8s.io resources: - ingressclasses verbs: - get - list - watch - apiGroups: - "" resourceNames: - ingress-controller-leader resources: - configmaps verbs: - get - update - apiGroups: - "" resources: - configmaps verbs: - create - apiGroups: - "" resources: - events verbs: - create - patch --- apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-admission namespace: ingress-nginx rules: - apiGroups: - "" resources: - secrets verbs: - get - create --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: labels: app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx rules: - apiGroups: - "" resources: - configmaps - endpoints - nodes - pods - secrets - namespaces verbs: - list - watch - apiGroups: - "" resources: - nodes verbs: - get - apiGroups: - "" resources: - services verbs: - get - list - watch - apiGroups: - networking.k8s.io resources: - ingresses verbs: - get - list - watch - apiGroups: - "" resources: - events verbs: - create - patch - apiGroups: - networking.k8s.io resources: - ingresses/status verbs: - update - apiGroups: - networking.k8s.io resources: - ingressclasses verbs: - get - list - watch --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-admission rules: - apiGroups: - admissionregistration.k8s.io resources: - validatingwebhookconfigurations verbs: - get - update --- apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx namespace: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: ingress-nginx subjects: - kind: ServiceAccount name: ingress-nginx namespace: ingress-nginx --- apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-admission namespace: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: ingress-nginx-admission subjects: - kind: ServiceAccount name: ingress-nginx-admission namespace: ingress-nginx --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: labels: app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: ingress-nginx subjects: - kind: ServiceAccount name: ingress-nginx namespace: ingress-nginx --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-admission roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: ingress-nginx-admission subjects: - kind: ServiceAccount name: ingress-nginx-admission namespace: ingress-nginx --- apiVersion: v1 data: allow-snippet-annotations: "true" kind: ConfigMap metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-controller namespace: ingress-nginx --- apiVersion: v1 kind: Service metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-controller namespace: ingress-nginx spec: externalTrafficPolicy: Local ipFamilies: - IPv4 ipFamilyPolicy: SingleStack ports: - appProtocol: http name: http port: 80 protocol: TCP targetPort: http - appProtocol: https name: https port: 443 protocol: TCP targetPort: https selector: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx type: LoadBalancer --- apiVersion: v1 kind: Service metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-controller-admission namespace: ingress-nginx spec: ports: - appProtocol: https name: https-webhook port: 443 targetPort: webhook selector: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx type: ClusterIP --- apiVersion: apps/v1 kind: Deployment metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-controller namespace: ingress-nginx spec: minReadySeconds: 0 revisionHistoryLimit: 10 selector: matchLabels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx template: metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/name: ingress-nginx spec: hostNetwork: true #修改 ingress-nginx-controller 为 hostNetwork模式 nodeSelector: #选择 node label 中有 app=ingress的节点进行部署 app: ingress containers: - args: - /nginx-ingress-controller - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller - --election-id=ingress-controller-leader - --controller-class=k8s.io/ingress-nginx - --ingress-class=nginx - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller - --validating-webhook=:8443 - --validating-webhook-certificate=/usr/local/certificates/cert - --validating-webhook-key=/usr/local/certificates/key env: - name: POD_NAME valueFrom: fieldRef: fieldPath: metadata.name - name: POD_NAMESPACE valueFrom: fieldRef: fieldPath: metadata.namespace - name: LD_PRELOAD value: /usr/local/lib/libmimalloc.so image: k8s.gcr.io/ingress-nginx/controller:v1.1.2 #修改镜像地址 imagePullPolicy: IfNotPresent lifecycle: preStop: exec: command: - /wait-shutdown livenessProbe: failureThreshold: 5 httpGet: path: /healthz port: 10254 scheme: HTTP initialDelaySeconds: 10 periodSeconds: 10 successThreshold: 1 timeoutSeconds: 1 name: controller ports: - containerPort: 80 name: http protocol: TCP - containerPort: 443 name: https protocol: TCP - containerPort: 8443 name: webhook protocol: TCP readinessProbe: failureThreshold: 3 httpGet: path: /healthz port: 10254 scheme: HTTP initialDelaySeconds: 10 periodSeconds: 10 successThreshold: 1 timeoutSeconds: 1 resources: requests: cpu: 100m memory: 90Mi securityContext: allowPrivilegeEscalation: true capabilities: add: - NET_BIND_SERVICE drop: - ALL runAsUser: 101 volumeMounts: - mountPath: /usr/local/certificates/ name: webhook-cert readOnly: true dnsPolicy: ClusterFirst nodeSelector: kubernetes.io/os: linux serviceAccountName: ingress-nginx terminationGracePeriodSeconds: 300 volumes: - name: webhook-cert secret: secretName: ingress-nginx-admission --- apiVersion: batch/v1 kind: Job metadata: annotations: helm.sh/hook: pre-install,pre-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-admission-create namespace: ingress-nginx spec: template: metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-admission-create spec: containers: - args: - create - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc - --namespace=$(POD_NAMESPACE) - --secret-name=ingress-nginx-admission env: - name: POD_NAMESPACE valueFrom: fieldRef: fieldPath: metadata.namespace image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1 #修改镜像地址 imagePullPolicy: IfNotPresent name: create securityContext: allowPrivilegeEscalation: false nodeSelector: kubernetes.io/os: linux restartPolicy: OnFailure securityContext: fsGroup: 2000 runAsNonRoot: true runAsUser: 2000 serviceAccountName: ingress-nginx-admission --- apiVersion: batch/v1 kind: Job metadata: annotations: helm.sh/hook: post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-admission-patch namespace: ingress-nginx spec: template: metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-admission-patch spec: containers: - args: - patch - --webhook-name=ingress-nginx-admission - --namespace=$(POD_NAMESPACE) - --patch-mutating=false - --secret-name=ingress-nginx-admission - --patch-failure-policy=Fail env: - name: POD_NAMESPACE valueFrom: fieldRef: fieldPath: metadata.namespace image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1 #修改镜像地址 imagePullPolicy: IfNotPresent name: patch securityContext: allowPrivilegeEscalation: false nodeSelector: kubernetes.io/os: linux restartPolicy: OnFailure securityContext: fsGroup: 2000 runAsNonRoot: true runAsUser: 2000 serviceAccountName: ingress-nginx-admission --- apiVersion: networking.k8s.io/v1 kind: IngressClass metadata: labels: app.kubernetes.io/component: controller app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: nginx spec: controller: k8s.io/ingress-nginx --- apiVersion: admissionregistration.k8s.io/v1 kind: ValidatingWebhookConfiguration metadata: labels: app.kubernetes.io/component: admission-webhook app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/managed-by: Helm app.kubernetes.io/name: ingress-nginx app.kubernetes.io/part-of: ingress-nginx app.kubernetes.io/version: 1.1.2 helm.sh/chart: ingress-nginx-4.0.18 name: ingress-nginx-admission webhooks: - admissionReviewVersions: - v1 clientConfig: service: name: ingress-nginx-controller-admission namespace: ingress-nginx path: /networking/v1/ingresses failurePolicy: Fail matchPolicy: Equivalent name: validate.nginx.ingress.kubernetes.io rules: - apiGroups: - networking.k8s.io apiVersions: - v1 operations: - CREATE - UPDATE resources: - ingresses sideEffects: None 4.部署 Ingress-nginx 4.1 准备工作

给 node2 节点打了app=ingress标签，因为上面的ingress-nginx-controller 使用的是 hostNetwork 模式（只会放pod真实pod 的端口） + nodeSelector

kubectl label node kubec-node-2 app=ingress

4.2 部署 kubect apply -f

kubectl apply -f deploy.yaml #通过 kubectl apply 命令进行部署，前提是镜像准备好，否则GG

4.3 查看状态

kubectl get all -n ingress-nginx #查看 ingress-nginx namespace的部署情况

kubectl logs -f ingress-nginx-controller-744f6d5bdf-tl6g4 -n ingress-nginx # 查看 ingress-nginx-controller 的日志情况

4.4 测试访问

直接访问 kube-node-2的 ip 即可，因为 ingress-nginx-controller 默认是监听 80端口，由于上面的 nodeSelector: #选择 node label 中有 app=ingress的节点进行部署 ,而 kube-node-2 是被打了标签的节点node

可以看到其实就是一个 nginx

5.部署一个 tomcat 测试 Ingress-nginx

通过部署一个tomcat ，测试Ingress-nginx的代理是否生效

5.1 编写 deploy-tomcat.yaml

主要编写

Deployment 部署tomcat:8.0-alpine，
Service 暴露 tomcat pod
一个 Ingress 资源它规定访问 tomcat.demo.com 这个域名的所有请求 / 都转发到 tomcat-demo Service 上

IngressClass 新版本提供的资源，用于在定义 Ingress资源的时候指定，在集群中有多个 Ingress controller 的时候很有用处

apiVersion: apps/v1 kind: Deployment metadata: name: tomcat-demo spec: selector: matchLabels: app: tomcat-demo replicas: 1 template: metadata: labels: app: tomcat-demo spec: containers: - name: tomcat-demo image: tomcat:8.0-alpine ports: - containerPort: 8080 --- apiVersion: v1 kind: Service metadata: name: tomcat-demo spec: selector: app: tomcat-demo #选择 tomcat-demo pod ports: - port: 80 #对外暴露 80 端口 protocol: TCP targetPort: 8080 # tomcat 端口 --- apiVersion: networking.k8s.io/v1 kind: Ingress metadata: name: tomcat-demo spec: defaultBackend: service: name: default-http-backend #！！！指定默认的backend服务 port: number: 80 ingressClassName: nginx #！！！重点需要指定哪个 IngressClass 可以看上面的 deploy.yaml 最后定义的 rules: - host: tomcat.demo.com #所有的 tomcat.demo.com请求都转发到 Service tomcat-demo http: paths: - pathType: Prefix path: "/" backend: service: name: tomcat-demo port: number: 80 --- #定义一个 default-http-backend 当没有被Ingress规定的请求负载给它 apiVersion: apps/v1 kind: Deployment metadata: name: default-http-backend labels: app: default-http-backend spec: replicas: 1 selector: matchLabels: app: default-http-backend template: metadata: labels: app: default-http-backend spec: terminationGracePeriodSeconds: 60 containers: - name: default-http-backend # Any image is permissible as long as: # 1. It serves a 404 page at / # 2. It serves 200 on a /healthz endpoint image: registry.cn-hangzhou.aliyuncs.com/google_containers/defaultbackend:1.4 livenessProbe: httpGet: path: /healthz port: 8080 scheme: HTTP initialDelaySeconds: 30 timeoutSeconds: 5 ports: - containerPort: 8080 resources: limits: cpu: 10m memory: 20Mi requests: cpu: 10m memory: 20Mi --- apiVersion: v1 kind: Service metadata: name: default-http-backend labels: app: default-http-backend spec: ports: - port: 80 targetPort: 8080 selector: app: default-http-backend 5.2 部署 tomcat + ingress + default-http-backend

部署上面的文件即可

查看部署情况可以看到都是Running 了

5.3 测试通过Ingress-nginx 能否访问到tomcat

由于我们 ingress 资源配置的域名是 tomcat.demo.com ，所以我需要把它添加到宿主机的hosts 文件中，如下

那么按照预期，当我访问 tomcat.demo.com 的时候其实就是访问 192.168.56.22 上的 ingress-nginx-controller 这个nginx，那么根据 ingress 的资源的设定它会把请求转发到 Service tomcat-demo 上，从而访问到 tomcat 界面

当我访问 api.demo.com 的时候由于没有对这个域名进行处理那么会默认把请求转发到 default-http-backend 上

访问 tomcat.demo.com

访问 api.demo.com

总结

至此在k8s 1.23.5上已经成功部署了 Ingress-nginx ，并且通过部署一个tomcat服务测试了 Ingress-nginx 已经代理成功了，由于不管是 k8s 新版本和 Ingress-nginx 新版本都有些变化所有很些坑，是我从官网不断摸索的，下面总结一下坑点

image 镜像需要自己从docker hub 上准备好，或者直接修改Ingress-nginx 的 deploy.yaml

k8s.gcr.io/ingress-nginx/controller:v1.1.2

k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1
重要！新版本中提供了 IngressClass ，需要在编写 Ingress 的时候指定
把 ingress-nginx-controller 使用 hostNetwork: true 进行部署比 NodePort 减少一层转发，但是需要指定选择打了标签的 node nodeSelector: app: ingress
通过 Ingress spec.defaultBackend 指定默认服务，并且需要保持在同一个 namespace

spec: defaultBackend: service: name: default-http-backend #！！！指定默认的backend服务 port: number: 80
vscode k8s 插件快捷生成Depoyment 的时候自定添加了资源限制，导致部署tomcat的时候总是启动不起来..

导致tomcat pod 状态 CrashLoopBackOff，从而导致通过 Ingress-nginx 无法访问到tomcat

resources: limits: memory: "128Mi" #不够部署tomcat 内存 cpu: "500m"
